This page is part of the HRSA Uniform Data System (UDS) Patient Level Submission (PLS) (UDS+ or uds-plus) FHIR IG (v1.0.1: STU1) based on FHIR (HL7® FHIR® Standard) R4. This is the current published version in its permanent home (it will always be available at this URL). For a full list of available versions, see the Directory of published versions
| Page standards status: Trial-use |
This section provides examples of Request and Responses that can be used by implementers to better understand the interactions.
{
"meta": {
"extension": [
{
"valueString": "UDS+ Manifest File Example",
"url": "http://hl7.org/fhir/StructureDefinition/instance-name"
},
{
"valueMarkdown": "This is an example of a Manifest file submitted as a parameter to the UDS+ $import operation.",
"url": "http://hl7.org/fhir/StructureDefinition/instance-description"
}
],
"profile": [
"http://hl7.org/fhir/us/uds-plus/StructureDefinition/uds-plus-import-manifest"
]
},
"parameter": [
{
"name": "inputFormat",
"valueCode": "fhir+ndjson"
},
{
"part": [
{
"valueString": "12343434",
"name": "uei"
},
{
"valueString": "H80CS34333",
"name": "grantNumber"
},
{
"valueString": "FQHC_Utah",
"name": "hcName"
},
{
"valueAddress": {
"city": "Atlanta",
"line": [
"123 Rocky point place"
],
"postalCode": "23434",
"state": "GA"
},
"name": "hcAddress"
},
{
"name": "hcContactPerson",
"valueHumanName": {
"given": [
"Elizabeth"
],
"family": "Taylor"
}
},
{
"valueContactPoint": {
"system": "phone",
"value": "234-234-5648"
},
"name": "hcContactPhone"
},
{
"name": "hcPrenatalCareByReferralOnly",
"valueBoolean": true
}
],
"name": "hcInformation"
},
{
"name": "importProtocol",
"valueCode": "https"
},
{
"valueString": "8600c",
"name": "submissionId"
},
{
"part": [
{
"name": "type",
"valueCode": "AllergyIntolerance"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/AllergyIntolerance.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Condition"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Condition.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Coverage"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Coverage.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Encounter"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Encounter.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Immunization"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Immunization.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "MedicationRequest"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/MedicationRequest.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "MedicationStatement"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/MedicationStatement.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Observation"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Income.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Observation"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/SexualOrientation.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Observation"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Observation.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Parameters"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/ReportingParameters.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Patient"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Patient.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "Procedure"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/Procedure.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "RelatedPerson"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/RelatedPerson.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
},
{
"part": [
{
"name": "type",
"valueCode": "ServiceRequest"
},
{
"name": "url",
"valueUrl": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/ServiceRequest.ndjson"
},
{
"name": "expirationTime",
"valueDateTime": "2023-12-31T11:58:07-08:00"
}
],
"name": "udsData"
}
],
"id": "example",
"resourceType": "Parameters"
}

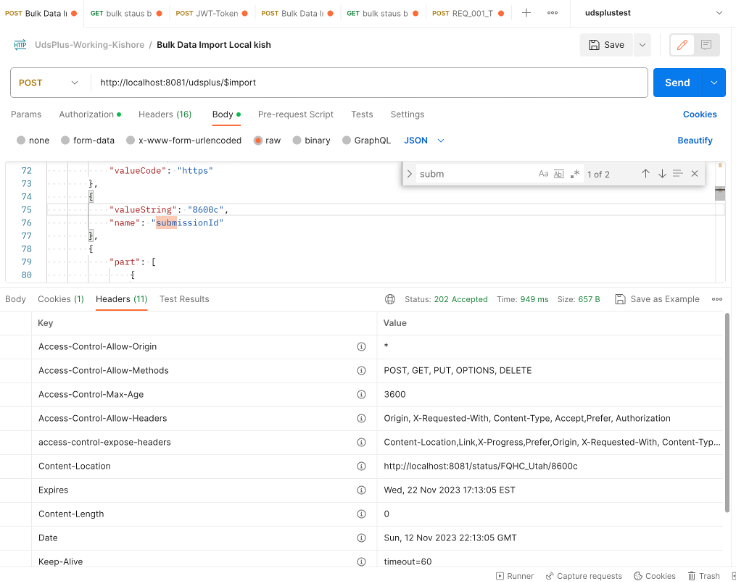

This screenshot below shows an example response that has a HTTP Status of 201 - Accepted and the Content-Location URL that should be used for polling.
The example Content-Location URL is : http://localhost:8081/status/FQHC_Utah/8600c which can be used for polling. In the real-world, the content location polliing request also uses https and access tokens before you can get the status of the submission.
When the Data Submitter performs a poll and if the import is successful, a response such as below will be provided.
{
"resourceType": "OperationOutcome",
"id": "63c46155-28e0-40e0-a32c-89de95675f0c",
"text": {
"status": "generated",
"div": "<div xmlns=\"http://www.w3.org/1999/xhtml\">$import is successfully processed</div>"
},
"issue": [
{
"id": "4c9c927b-e0ba-48dd-b436-cdc140b1aa0a",
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "information",
"display": "$import is successfully processed"
}
]
}
}
]
}
[
{
"issue": [
{
"severity": "error",
"code": "exception",
"details": {
"coding": [
{
"code": "error",
"display": "Invalid Resource Download URL"
}
]
},
"id": "1f6f15fc-3138-4b9f-8e74-a7af8f5d6007"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "health_center_name",
"display": "FQHC_Utah"
}
]
},
"id": "1e3d06a5-ad20-4d2a-8131-0b5ad641d895"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "submission_id",
"display": "8600a"
}
]
},
"id": "b69c0f8c-8ee5-47ca-ba99-978fae5ac8a7"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "resource_type",
"display": "Observation"
}
]
},
"id": "df8fc8c3-1038-4f6d-a738-114748135ff3"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "resource_file_name",
"display": "SexualOrientati.ndjson"
}
]
},
"id": "ee655aa4-29b4-4ea8-bdf6-70f2a90a56a7"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "resource_url",
"display": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/SexualOrientati.ndjson"
}
]
},
"id": "7984c645-c77c-4416-842b-ce2f580f4bac"
}
],
"id": "28b45d47-9e3f-418f-a2fe-eddf7df41026",
"text": {
"div": "<div xmlns=\"http://www.w3.org/1999/xhtml\">https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/SexualOrientati.ndjson</div>",
"status": "generated"
},
"resourceType": "OperationOutcome"
},
{
"issue": [
{
"severity": "error",
"code": "exception",
"details": {
"coding": [
{
"code": "error",
"display": "Invalid Resource Download URL"
}
]
},
"id": "1f6f15fc-3138-4b9f-8e74-a7af8f5d6007"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "health_center_name",
"display": "FQHC_Utah"
}
]
},
"id": "1e3d06a5-ad20-4d2a-8131-0b5ad641d895"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "submission_id",
"display": "8600a"
}
]
},
"id": "b69c0f8c-8ee5-47ca-ba99-978fae5ac8a7"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "resource_type",
"display": "Observation"
}
]
},
"id": "df8fc8c3-1038-4f6d-a738-114748135ff3"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "resource_file_name",
"display": "SexualOrientati.ndjson"
}
]
},
"id": "ee655aa4-29b4-4ea8-bdf6-70f2a90a56a7"
},
{
"severity": "information",
"code": "informational",
"details": {
"coding": [
{
"code": "resource_url",
"display": "https://udsplusblobstorage.blob.core.windows.net/importsuccessfulfiles/SexualOrientati.ndjson"
}
]
},
"id": "7984c645-c77c-4416-842b-ce2f580f4bac"
},
{
"severity": "error",
"code": "exception",
"details": {
"coding": [
{
"code": "error",
"display": "Resource Download Failed"
}
]
},
"id": "66e39819-1414-4a6d-a284-ad5b63e44fee"
}
],
"id": "28b45d47-9e3f-418f-a2fe-eddf7df41026",
"text": {
"div": "<div xmlns=\"http://www.w3.org/1999/xhtml\">Resource Download Failed</div>",
"status": "generated"
},
"resourceType": "OperationOutcome"
}
]

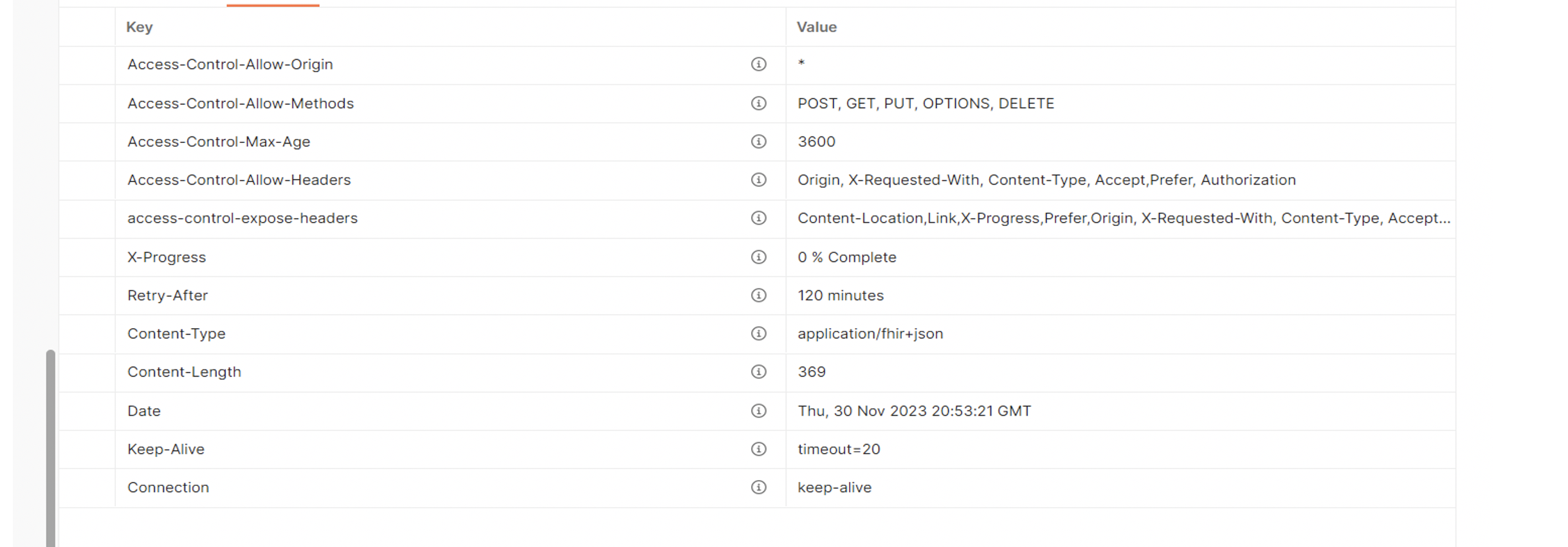

The screenshot below shows example of X-Progress header for an import operation that is not yet complete

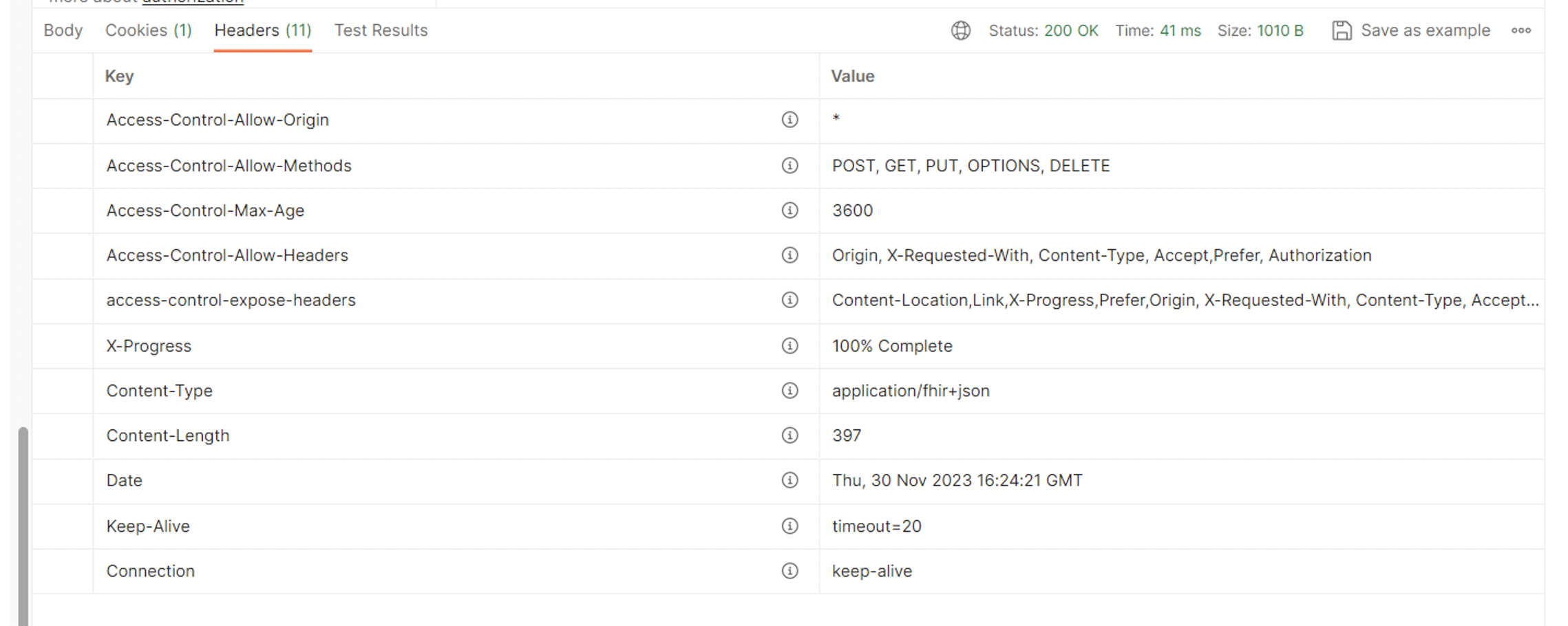

The screenshot below shows example of X-Progress header for an import operation that is completed successfully

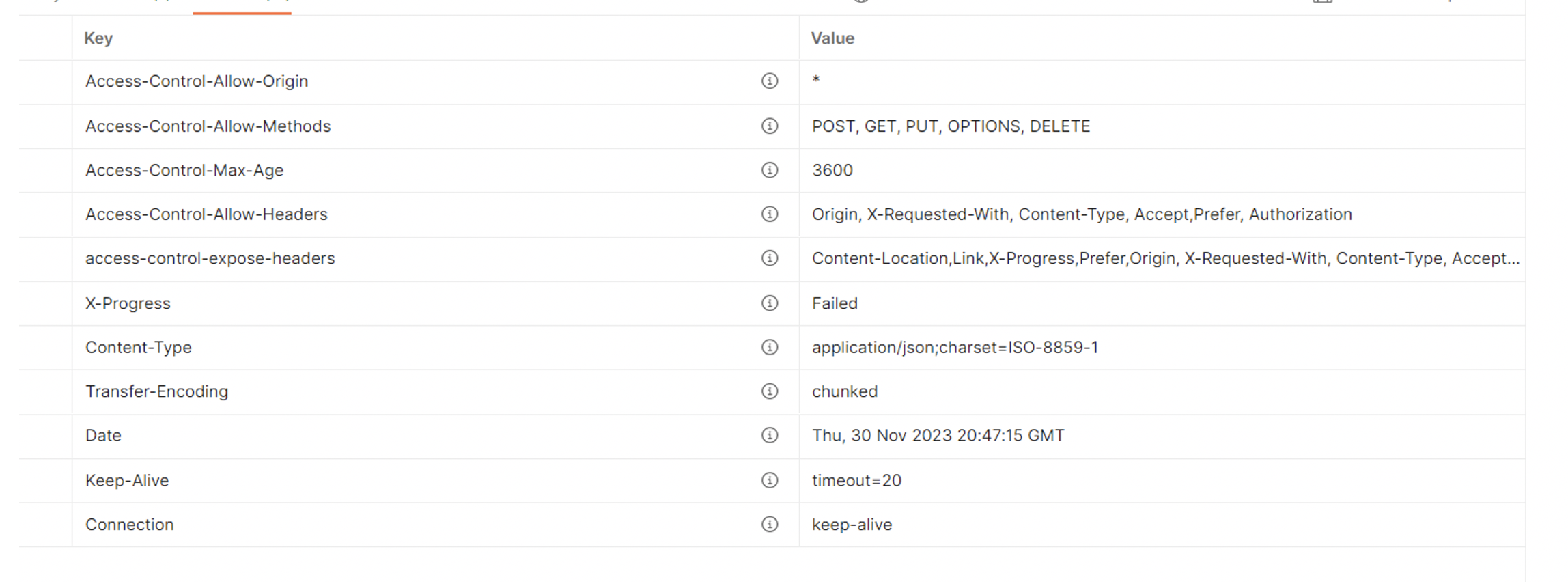

The screenshot below shows example of X-Progress header for an import operation that failed
